2 two ROLL REFINER

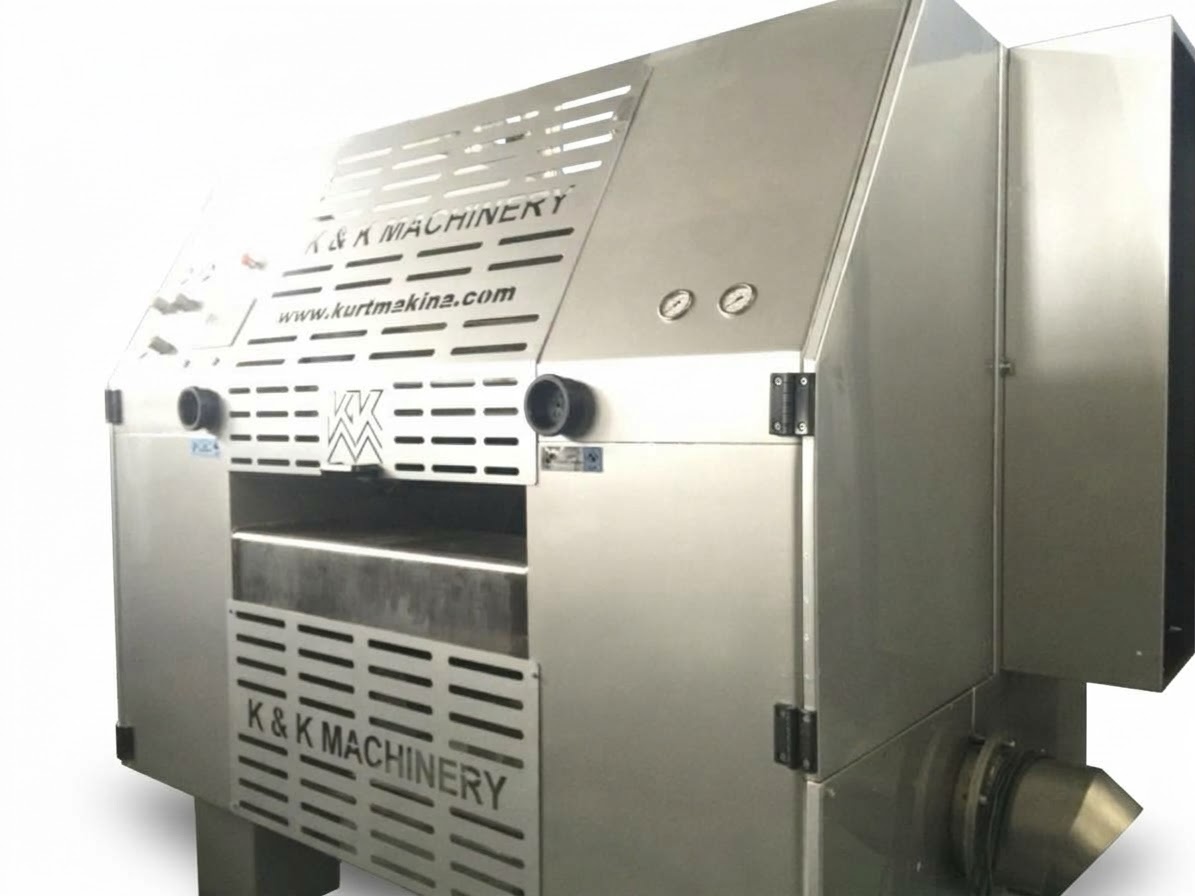

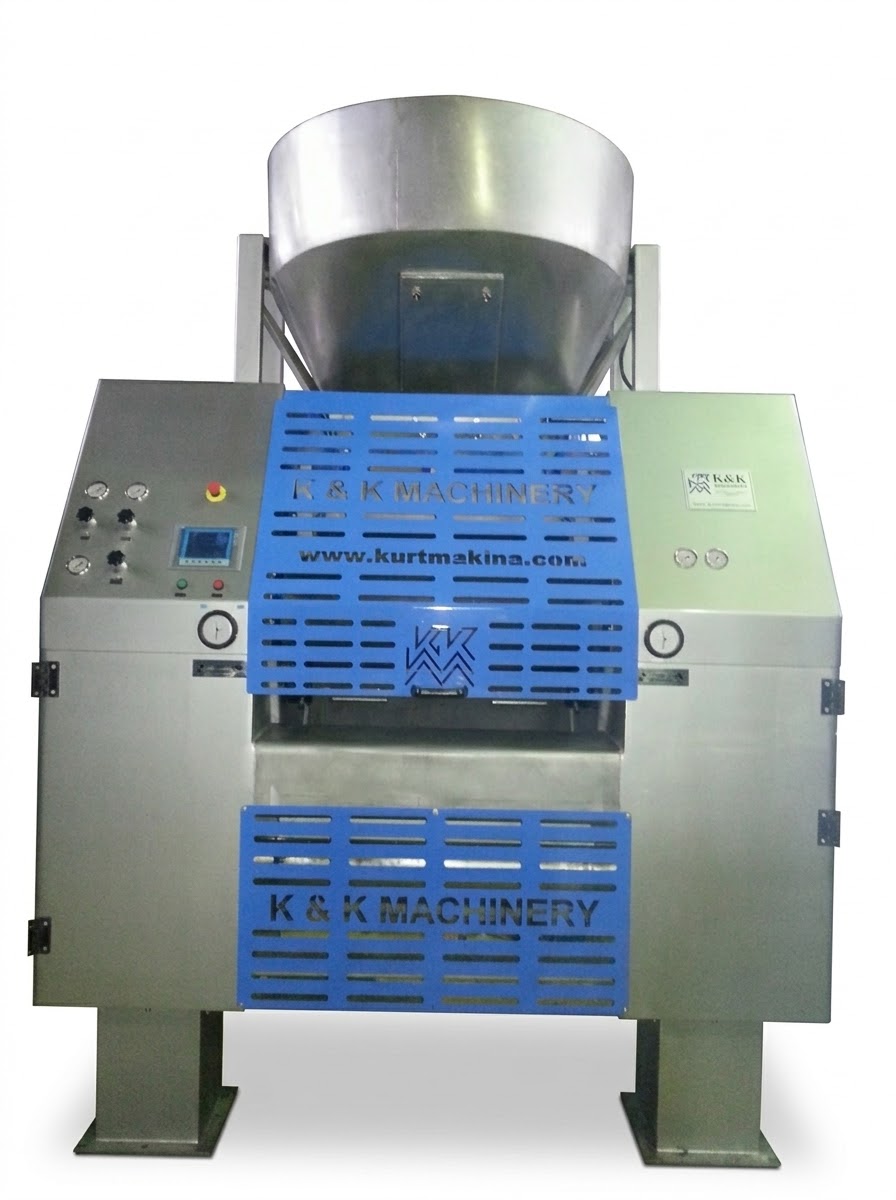

The K&KURT 2 two ROLL REFINER for chocolate is designed with the latest technology. 2 roll refiner can be used as prefiner before 5 roll refiner or stand alone refiner with multiple refining proces. The crushing of chocolate ingredients between the two grinding rolls makes possible to use crystal sugar instead of powder sugar. In this way it is possible to eliminate the humidity in chocolate. It is possible to get high degrees of fineness from 2 two roll refiner without causing damage to the product due to the overheating which is typical of other types of refining processes. We obtained very fine outputs during our tests.
|
.jpg) |
.jpg) |

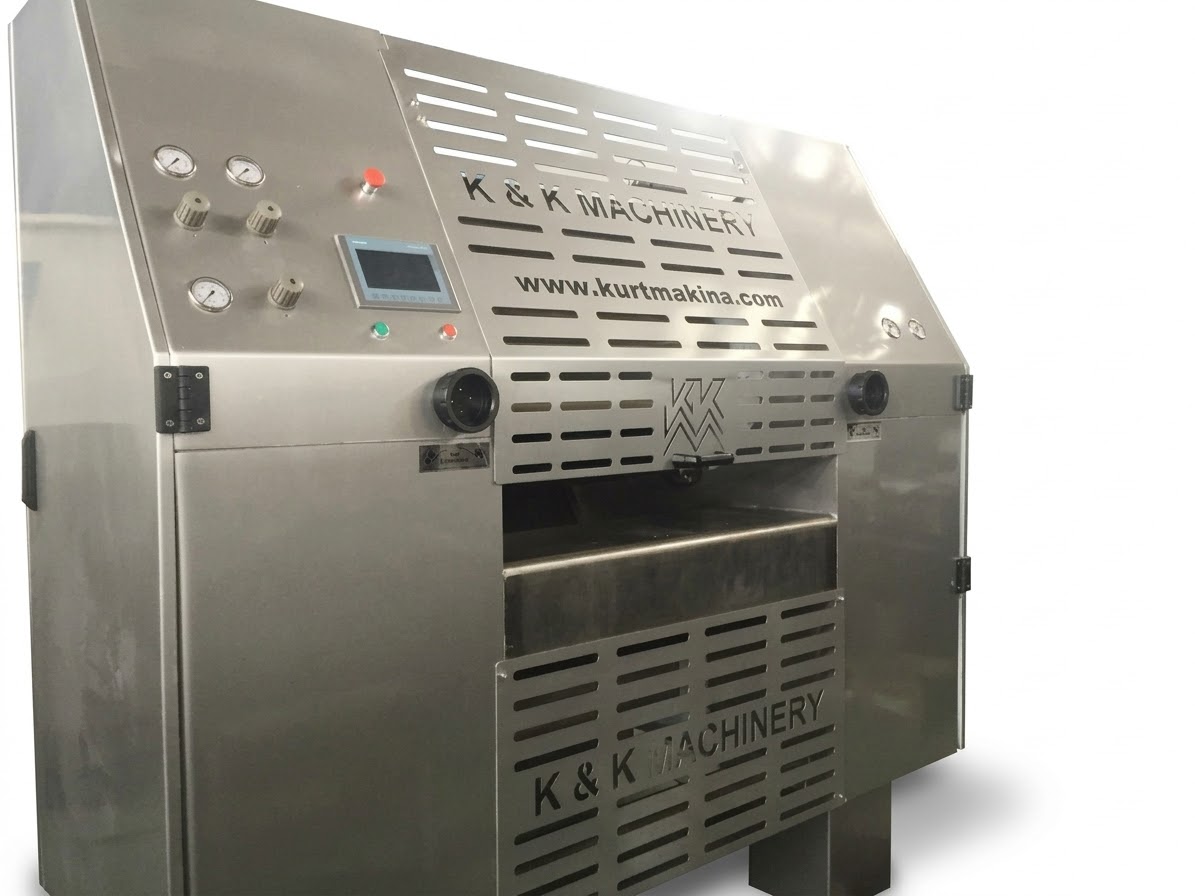

K&K 2 two roll refiners have PLC automatic controls. |
.jpg) |
The results obtainable with the use of the 2 two roll refiner in particular, the fineness, flavor and technological characteristics of the finished product cannot be reproduced with other types of systems. This is because other processes take place during the refining process, and these are fundamental for the formation of the characteristics of the final product. The area of contact between the two rolls is very limited and 50% of the surface of the rolls is used as a cooling area. | .jpg) |
.jpg)
Technical data K&K 2 two roll refiner for chocolate
|
KK2R900P |
||
|
Rolls
|
Diameter
( mm ) |
400 |
|
Useful
length ( mm ) |
900 |
|
|
Drive
|
Main motor ( KW ) | 45 |
|
Nominal
throughput |
at 90 - 160 µm (t/h) | 2.0
- 5.0 |
Notice: grain sugar size 600 - 700 µ .
